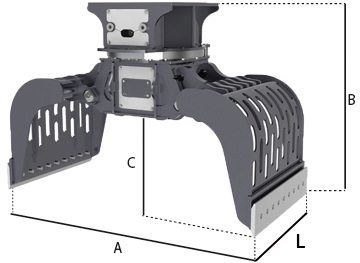

HAMMER GR 140 + S JAWS
Technical Specification
Equipement weight (kg)
1000 (kg)
(A) Opening (mm)
1800 (mm)
(B) length (mm)
800 (mm)
(C) Height (mm)
1450 (mm)
(L) Width (mm)
880 (mm)
Excavator weight (ton)
13/19 (t)
Maximum working pressure (bar)
300 (bar)
Maximum oil delivery (lit/min)
50 (lit/min)
Rotation pressure (bar)
60 (bar)
Rotation oil flow capacity (lit/min)
30 (lit/min)

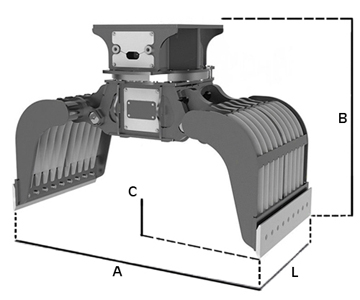

HAMMER GR 140 + D JAWS
Technical Specification
Equipement weight (kg)
1000 (kg)
(A) Opening (mm)
1800 (mm)
(B) length (mm)
800 (mm)
(C) Height (mm)
1450 (mm)
(L) Width (mm)
880 (mm)
Excavator weight (ton)
13/19 (t)
Maximum working pressure (bar)
300 (bar)
Maximum oil delivery (lit/min)
50 (lit/min)
Rotation pressure (bar)
60 (bar)
Rotation oil flow capacity (lit/min)
30 (lit/min)
